Using Differential Lock

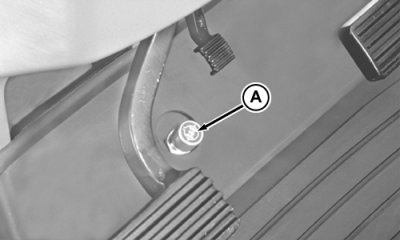

When one wheel begins to slip, engage differential lock by pressing switch (A). Indicator light on display panel shows engagement. To disengage differential lock, press either brake pedal.

Differential lock automatically disengages at speeds above 14 km/h (9 mph).
