Using Trailer Hydraulic Brakes

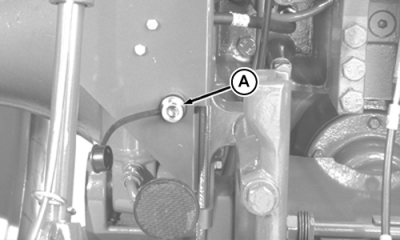

Remove cap from trailer brake coupler (A). Connect pressure hose to brake coupler, making sure hose end and coupler are clean.

Press down on brake pedals to operate hydraulic trailer brake.
