Using Sway Blocks

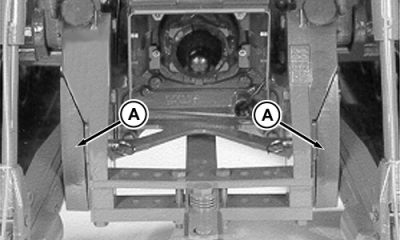

To minimize side sway of hitch, install sway blocks (A) in lower position.

AG,RX15494,3045 -19-11NOV99-1/3

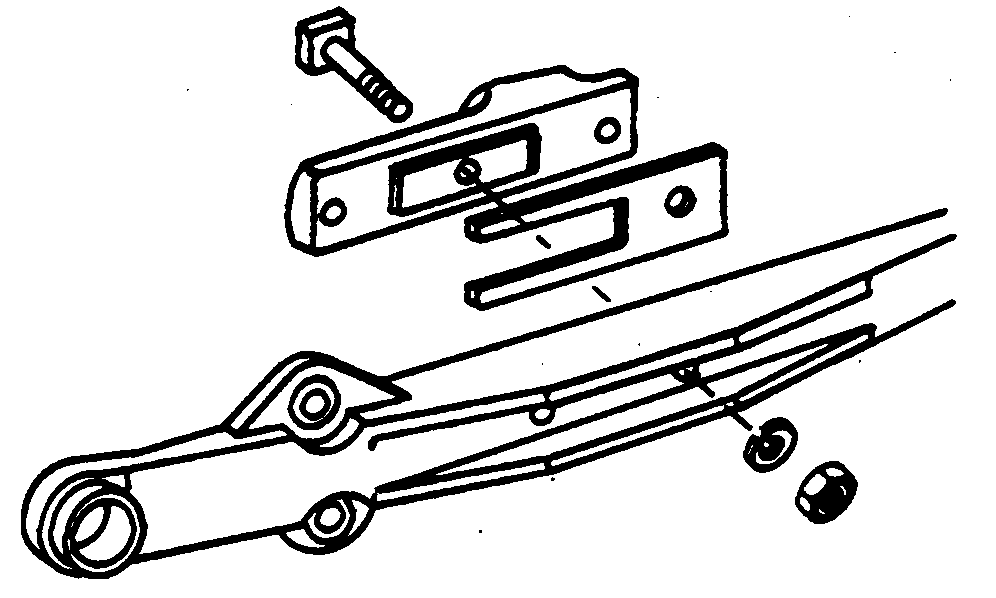

If hitch has too much side sway with sway blocks installed, shims may be added behind bumpers on draft links. Shims are available from your John Deere Dealer.

AG,RX15494,3045 -19-11NOV99-2/3

NOTE: When tractor is equipped with pickup hitch, special draft link bumpers are required to provide clearance with Category 2 implements operating with full sway. Bumpers are available from your John Deere Dealer.

Mount sway blocks (A) in upper position to allow side sway when hitch is lowered. Side sway is prevented when hitch is raised.

IMPORTANT: To prevent draft link interference, be sure distance between tires is:

Category 3N Hitch-1.09 m (43 in.)

Category 3 Hitch-1.17 m (46 in.)
