Stabilizing System

IMPORTANT: Check full range of hitch movement when using stabilizing system. Check for interference when tractor is equipped with 710/70R38 tires.

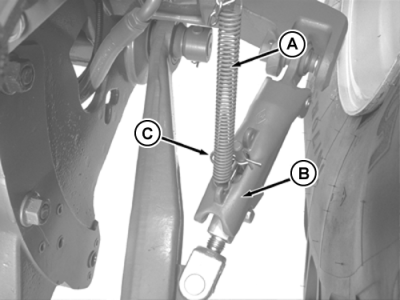

The stabilizing system is operated by means of chain/spring (A) and latch (B). If latch is raised (remove pin (C) to raise latch), the draft links have lateral sway, otherwise they are locked.

Chain (A) Short -

Draft links are locked in raised position (rigid setting), in lowered position they have lateral sway.

Chain (A) Long -

Draft links are locked in all positions.

AG,RX15494,3046 -19-11NOV99-1/1
