Adjusting Quick-Coupling (Hook-Type) Draft Links

Draft links equipped with tractor are intended for Category 3 or 3N implements. Implements can be attached to and removed from the draft links without operator having to leave the seat.

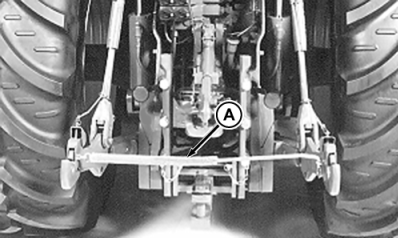

Adjust draft links to the dimension for Category 3 or 3N implements using adjusting rod (A), if equipped.

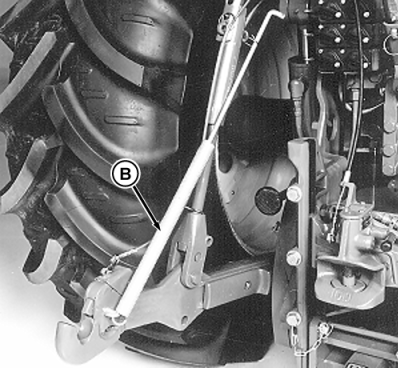

Adjusting rod can be stored in upright position (B), if not needed.

RW55587A
RW55588A

AG,RX15494,3048 -19-11NOV99-1/1
