Detaching Implement

1. Lower implement to the ground.

2. Disconnect hydraulic hoses and electrical connections.

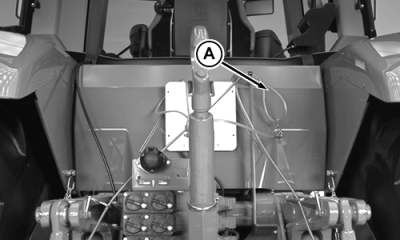

3. Pull release cable (A) and lower the hitch until coupler hooks are clear of implement hitch pins.

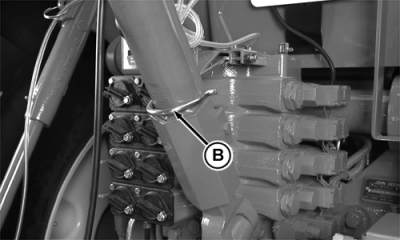

4. Disconnect center link from implement. Lock center link into the transport position (B).

5. Carefully drive tractor forward away from implement.

RW26347
RW26345

AG,RX15494,3050 -19-11NOV99-1/1
