Adjusting Center Link

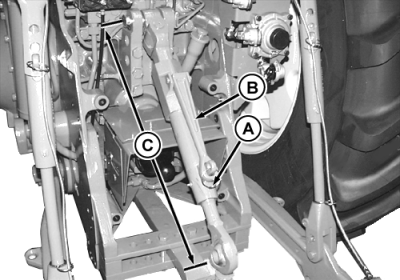

Adjust center link to level implement front-to-rear.

1. Remove lock pin (A), lift latch (B), and slide collar rearward.

2. Rotate center portion of center link to desired position.

3. Secure latch with lock pin.

4. Measure between centers of pins (C).

NOTE: Normal adjustable range is 729-900 mm (28.7-35.4 in.).

AG,RX15494,3052 -19-11NOV99-1/1
