Adjusting Lift Links

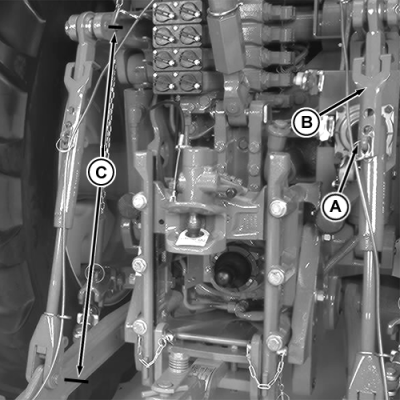

Adjust lift link to level implement side-to-side.

1. Remove retaining ring (A) and lift latch (B).

2. Rotate center portion of lift link to desired position.

3. Secure latch with retaining ring.

4. Measure between centers of pins (C).

NOTE: Normal adjustable range is 968.5-1063.5 mm (38.1-41.9 in.) with float locked out.
