Operating the Trailer Hitch

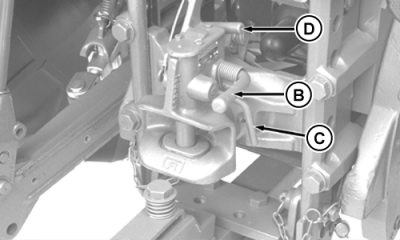

Trailer hitch can be released from the operator's seat using lever (A) or by using hitch lever (B).

causym CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

The hitch device closes automatically when trailer towing eye enters the hitch or can be manually closed using lever (C).

Hitch height can be adjusted using lever (D).

RW26701
RW55552A

AG,RX15494,3057 -19-11NOV99-1/1
