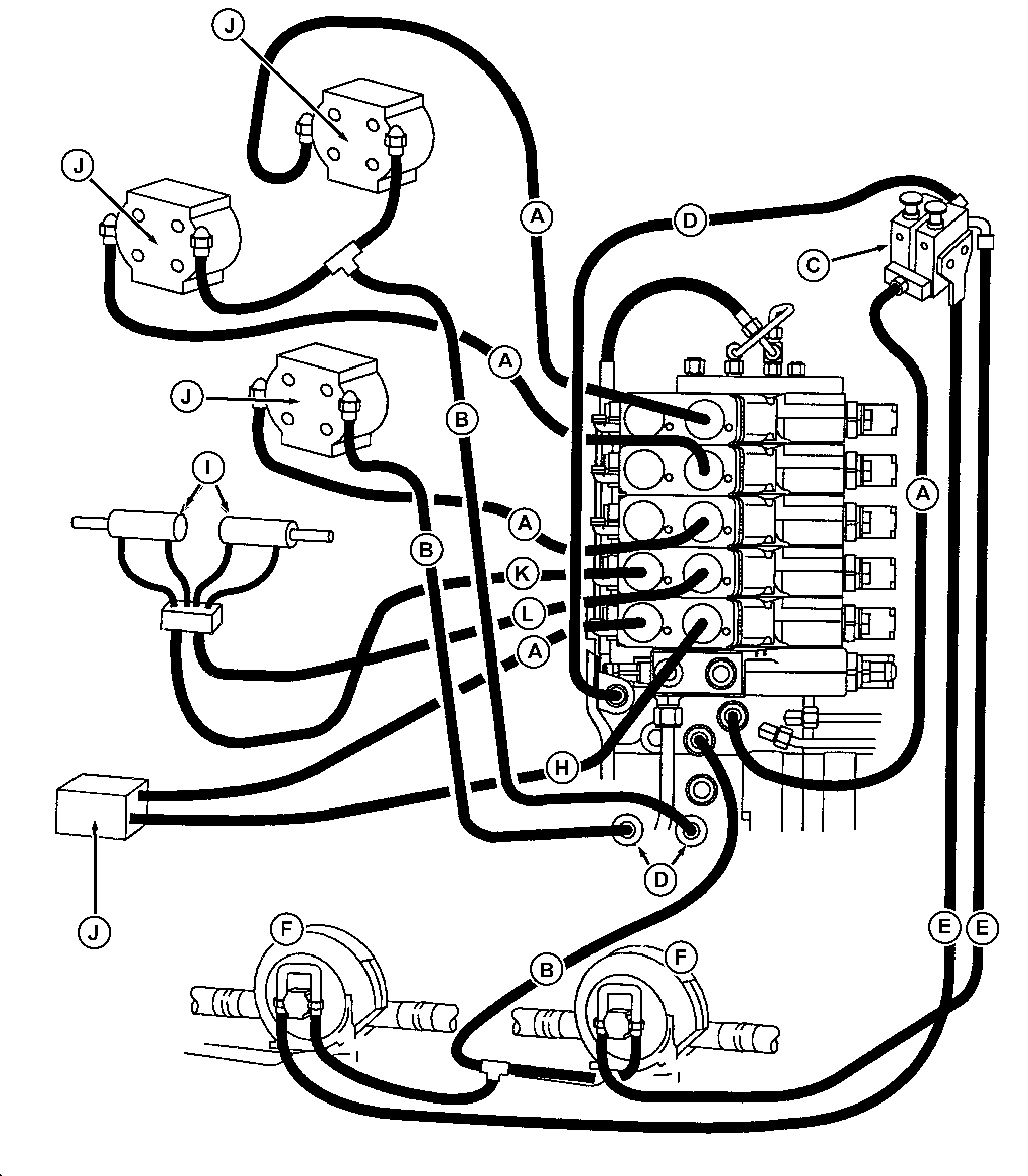

A-Pressure Line
B-Return Line
C-Flow Control Valve

D-Load Sense Line
E-Controlled Flow Lines
F-Vacuum Motor

G-Return Couplers
H-Implement Control Valve
I-Markers

J-Hydraulic Motor
K-Extend Coupler Line
L-Retract Coupler Line

AG,RX15494,3093 -19-11NOV99-1/1
