Adjusting Drawbar Length

IMPORTANT: For PTO-driven implement, drawbar must be positioned as instructed in Attaching PTO Driven Implement in this section.

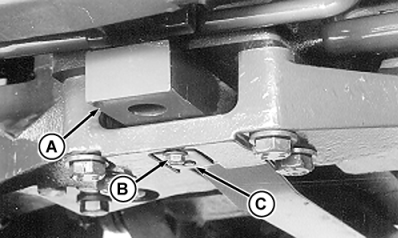

Drawbar (A) length can be extended:

1. Loosen drawbar locking bolts.

2. Remove cap screw (B), retaining pin (C) and retaining strap.

3. Slide drawbar to desired position.

4. Install drawbar retaining strap and pin.

Specification

Retaining Cap Screws -Torque 70 N·m (50 lb-ft)

5. Tighten drawbar locking bolts.

Specification

Drawbar Locking Bolts -Torque 435 N·m (322 lb-ft)

RW55528A

AG,RX15494,3098 -19-11NOV99-1/1
