Installing and Using Clevis Assembly

IMPORTANT: Remove clevis assembly before using PTO shaft, or whenever PTO shaft might cause interference.

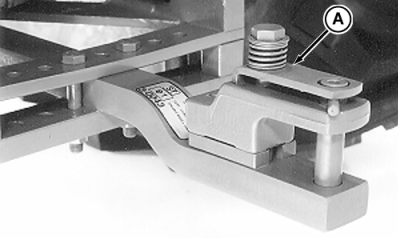

Install clevis assembly (A) and tighten cap screws.

Specification

Clevis Assembly Retaining Cap Screws -Torque

435 N·m (322 lb-ft)

AG,RX15494,3100 -19-02FEB00-1/2

IMPORTANT: Remove clevis assembly before using PTO shaft to avoid interference.

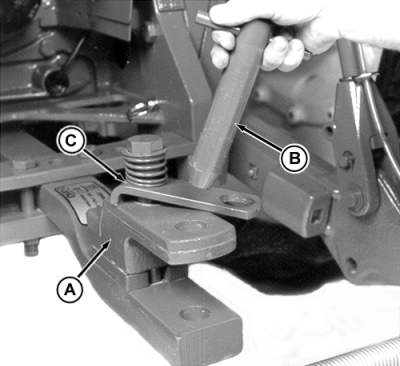

Clevis assembly (A) must be attached ONLY to top of drawbar.

Lock pin (B) is held in position with spring loaded retainer (C).

Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members.
