CAUTION: Avoid personal injury. Stop the engine and allow the PTO driveline to stop before making adjustments, connections, or cleaning of PTO-driven equipment.

Always disengage the PTO when not in use.

PTO can be engaged or disengaged without operating the clutch.

NOTE: PTO and Service Alert indicator lights will flash with an audible warning signal if operator leaves seat with PTO engaged. PTO does not disengage while operator is absent from the seat.

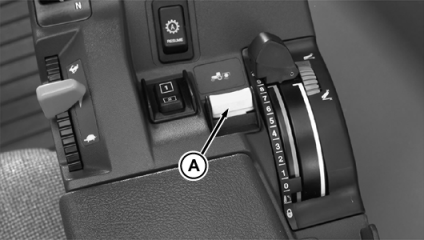

Push down and forward on PTO switch (A) to engage PTO clutch. The PTO indicator on display panel will light.

IMPORTANT: If PTO disengages during start up in cold-weather operation, wait 5

minutes before re-engaging or PTO damage may occur.

Pull back PTO switch to disengage clutch and PTO brake will engage automatically.

NOTE: If engine is stopped and then restarted while PTO is running, PTO will not operate. Disengage PTO control switch and then engage the PTO again.

PTO modulation time can be set for maximum or minimum modulation time. Both modulation settings will handle either light or heavy PTO loads. See your John Deere Dealer.

NOTE: Tractors are preset for maximum PTO modulation time.

AG,RX15494,3103 -19-11NOV99-1/1
