Using Rear Wheel Weights

CAUTION: When installing weights, use appropriate equipment or have the job done by your John Deere dealer.

NOTE: When using 1524 mm (60 in.) tread setting, maximum of two 205 kg (450 lb) or one 680 kg (1500 lb) weight can be installed on inside of wheel.

Cast iron weights of 75 kg (165 lb), 205 kg (450 lb), or 680 kg (1500 lb) can be installed on inside or outside of drive wheel. See your John Deere Dealer for weight use and placement.

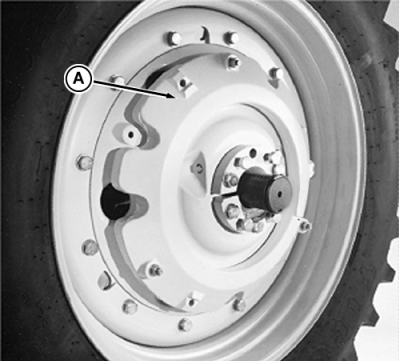

Install weights (A) on wheel.

For additional weights, install bolts in previous weight. Rotate alternate weight to align bolts with weight holes.

Tighten bolts. (See Torque Charts in the Specifications Section). Retighten after driving approximately 100 m (100 yd), after three hours, and again after ten hours. Check tightness every 250 hours.

IMPORTANT: Inside wheel weights must have at least 25 mm (1 in.) clearance between weight and tractor components.

AG,RX15494,3117 -19-11NOV99-1/1
