Adjusting Toe-In

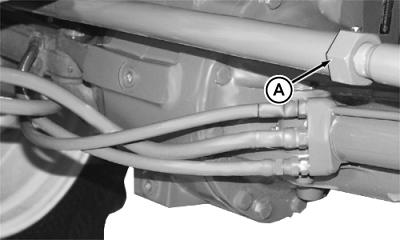

1. Loosen jam nuts on both ends of the rod tube (A).

2. Rotate tubes to lengthen or shorten tie rods, as needed to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

3. Tighten nuts on both ends of right and left tie rod tubes (A) to 200 N·m (150 lb-ft).
