Tread Settings-Off-Set Disk 16.9R and 480/70R Tires

NOTE: Tread settings are measured at bottom centerline of tire.

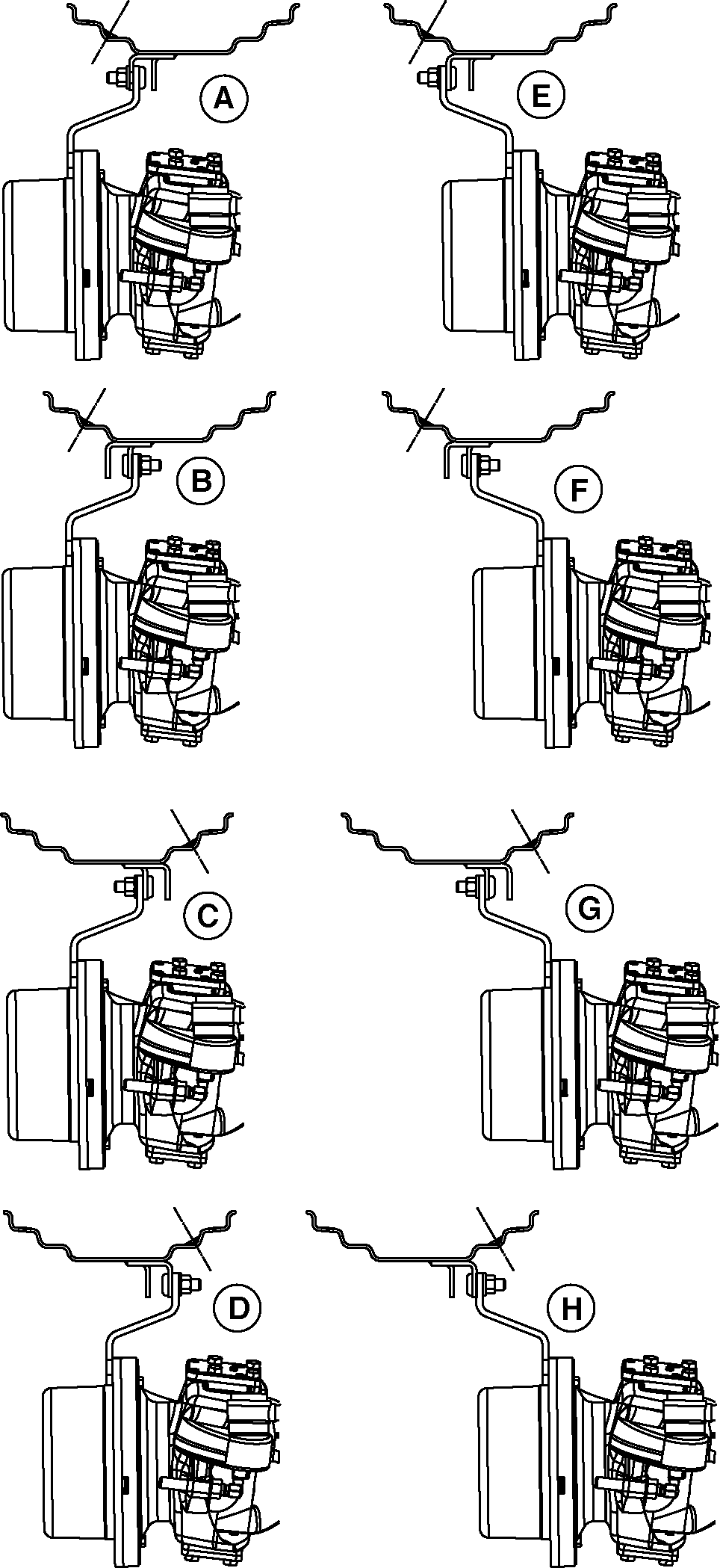

Use diagram as a guide to adjust the rim and disk, to a desired tread setting.

  Valve Stem Out Valve Stem In

A- 1577 mm (62 in.) -
B- 1679 mm (66 in.) -
C- - 1780 mm (70 in.)
D- - 1882 mm (74 in.)
E- 1877 mm (74 in.) -
F- 1979 mm (78 in.) -
G- - 2080 mm (82 in.)
H- - 2182 mm (86 in.)



IMPORTANT: After setting wheel spacing, tighten rim-to-disk bolts to 310 N·m (230 lb-ft) and disk-to-hub nuts to 600 N·m (445 lb-ft).

Adjust fenders and steering stops as required.

RW56581

AG,RX15494,3129 -19-11NOV99-1/1
