Removing Hood

Remove front grille and side shields as previously described

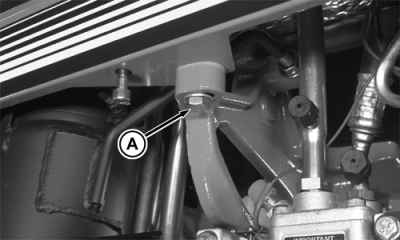

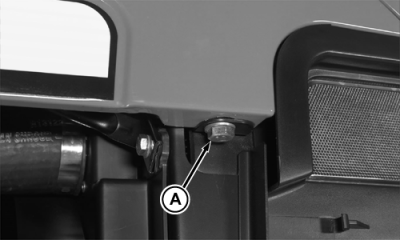

Remove front and rear bolts (A)

Raise front of hood and disconnect front lights

Lift hood from tractor and set on supports so that hood trim is not damaged

AG,RX15494,3151 -19-11NOV99-1/1
