Checking Secondary Brake Reservoir

CAUTION: Avoid personal injury. Connect reservoir cap sensor wiring after checking oil level.

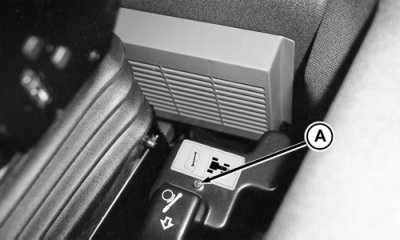

Remove cover (A). Disconnect wiring to reservoir cap. Twist cap to remove.

Oil level should be 15 mm (5/8 in.) from top of reservoir. If needed, add transmission-hydraulic oil.

Install reservoir cap and connect wiring to sensor.

AG,RX15494,3173 -19-11NOV99-1/1
