Bleeding Hydraulic Trailer Brake

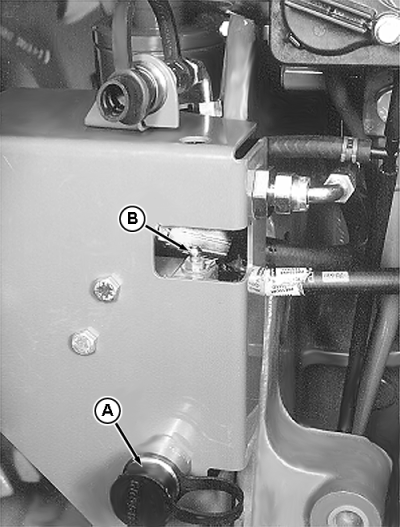

Install a hose into trailer brake outlet (A). Put other end of the hose into the hydraulic filler tube.

Loosen bleed screw (B) on trailer brake valve 1/3-1/2 turn. Push a 6 mm (1/4 in.) drain hose over bleed screw nipple. Put other end of hose in hydraulic filler tube.

Start engine at slow idle and depress brake pedals for 2 minutes.

Close bleed screw (B) with brake pedals depressed.

Remove hoses and install hydraulic filler tube cap.

AG,RX15494,3175 -19-11NOV99-1/1
