Replacing Transmission-Hydraulic Filter

Replace transmission-hydraulic filter element as required or 750 hours.

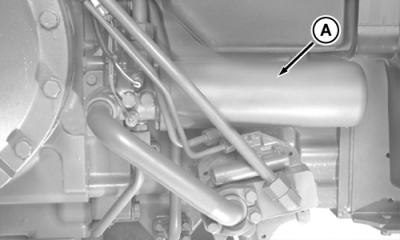

Remove filter element (A).

Lubricate the new filter packing with hydraulic oil only.

Install and hand tighten filter element.

Check oil level and add as required.

AG,RX15494,3183 -19-02FEB00-1/1
