Changing MFWD Hub and Axle Housing Oil

1. Put the tractor on level surface.

2. Rotate wheel until drain fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain-fill plug positioned horizontally after oil has drained.

4. Add John Deere GL-5 (85W-140) Gear Lubricant through drain-fill hole until oil is even with bottom of hole. Install the plug.

Specification

Wheel Hubs -Capacity 3.4 L (3.6 qt)

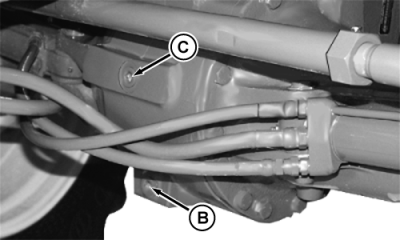

5. Remove axle housing drain plug (B). Replace plug after oil has drained.

6. Add John Deere HY-GARD ® Oil through fill hole (C) until oil is even with bottom of hole. Install the plug.

Specification

Axle Housing -Capacity 13.6 L (14.2 qt)

7. After a few minutes of operation, recheck oil level. Add more if necessary.

8. Tighten plugs.

Specification

MFWD Drain Plugs -Torque 70 N·m (52 lb-ft)

RW26336
RW56655A

HY-GARD is a trademark of Deere & Company

AG,RX15494,3189 -19-11NOV99-1/1
