Checking Coolant

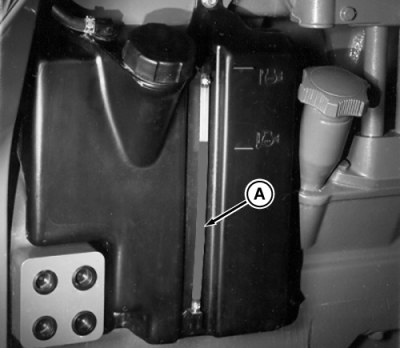

Check coolant level, using the sight glass (A), before starting the tractor. Coolant level should be at or slightly above lower mark when engine is cold.

If coolant level is low, check for any signs of leakage and repair if necessary. Check all hose clamps for tightness. Add coolant, as specified in Fuels, Lubricants and Coolant Section, to overflow tank.

IMPORTANT: Add 30 ml of John Deere Coolant Conditioner for every liter of coolant added (4 fluid ounces per gallon).

AG,RX15494,3194 -19-11NOV99-1/1
