Replacing Head Lights

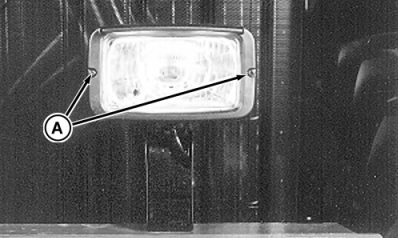

1. Remove screws (A) securing bulb to housing.

AG,RX15494,3205 -19-11NOV99-1/2

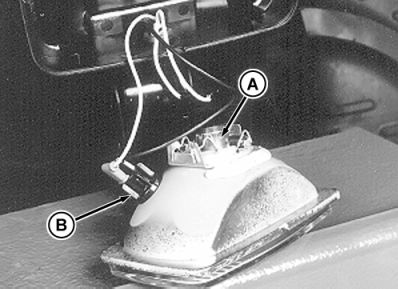

2. Unfasten retainer and pull bulb (A) or (B) from housing.

3. Disconnect bulb from wiring harness and connect new bulb.

4. After head light assembly has been reassembled, check and adjust head light aim.

AG,RX15494,3205 -19-11NOV99-2/2
