Replacing Head Lights-United Kingdom

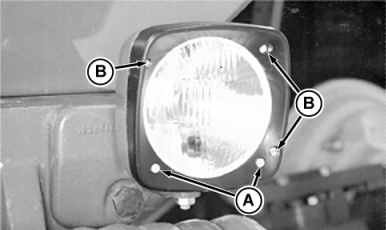

1. Remove screws (A) attaching lens holder to housing. If adjusting screws (B) are not disturbed, lamp may not have to be re-aimed when lamp is reassembled.

2. Disconnect wires from bulb.

RW8866A

AG,RX15494,3206 -19-11NOV99-1/2

3. Remove rubber cover (A).

4. Release bulb retainers (B) and remove bulb (C).

5. After head light assembly has been reassembled, check and adjust head light aim.

RW8867A
RW8868A

AG,RX15494,3206 -19-11NOV99-2/2
