Replacing and Adjusting Front Flood Lights

Remove front grille.

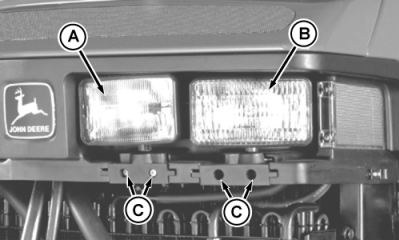

Remove screws (C) and retainer to replace flood lights (A) or (B). Unfasten connector and remove housing. Twist bulb counterclockwise and pull to remove.

Replace bulb and install screws (C) without tightening. Light will swivel up or down and from side-to-side.

Adjust each light to desired position and tighten screws (C).

AG,RX15494,3209 -19-11NOV99-1/1
