Using ClimaTrak® Temperature Control-Optional

Set switch to automatic position (A).

Select desired temperature by turning control knob (B).

Set fan speed control (C) to AUTO position.

NOTE: Fan speed adjusts automatically in AUTO position. Turning speed control (C) to manual mode settings provides continuous fan speed.

Select DEFOG setting (D) to reduce condensation inside the cab.

NOTE: If system indicator (F) flashes during operation, see your John Deere Dealer.

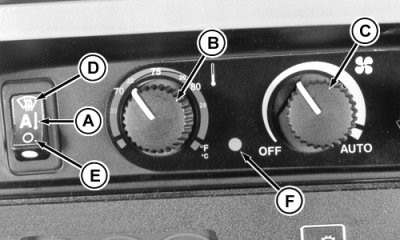

RW26847


A-Automatic Temperature Control Position
B-Temperature Control
C-Fan Speed Control
D-DEFOG Position
E-OFF Position
F-System Indicator

ClimaTrak is a trademark of Deere & Company

AG,RX15494,3641 -19-31JAN00-1/1
