Adjusting Blower Speed

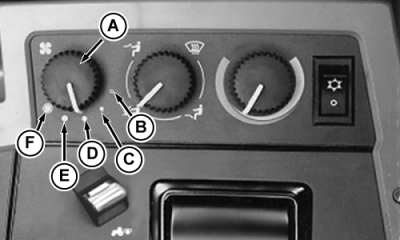

Turn knob (A) to desired blower speed.

NOTE: The purge position is designed to exhaust hot air rapidly from the cab.

The pressurization blower operates whenever the blower switch is in the ON position.

A-Blower Knob
B-Off
C-Low
D-Medium
E-High
F-Purge

AG,RX15494,1661 -19-26AUG99-1/1
