Auxiliary Power Strip-Optional

IMPORTANT: Power strip is not a surge suppressor. Electrical equipment with program memory or capacity for data storage requires protection from damage of electrical surges and spikes which could occur in system without transient voltage protection.

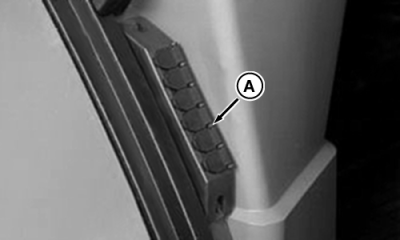

The power strip (A) provides six outlets, with 30-amp switched and 30-amp unswitched 12-volt power with ground, to use when connecting auxiliary equipment.

Adapters plug directly into power strip as unswitched power. To change to switched power on cigarette lighter adapter or standard adapter (with three wires), remove small tab at end of slot on plug and rotate plug 180°.

NOTE: The small white dot on adapter plug face next to the cap hinge indicates circuit is unswitched .

Opposite the cap hinge indicates circuit is switched .

Adapters, including cigarette lighter adapter, 3-way convenience adapter, and standard adapter, are available from your John Deere Dealer.

AG,RX15494,1671 -19-26AUG99-1/1
