Using the Brakes

CAUTION: Avoid personal injury. Reduce speed if towed load weighs more than the tractor or transporting loads under adverse conditions. Avoid hard braking applications. (See implement manual and Transporting Section).

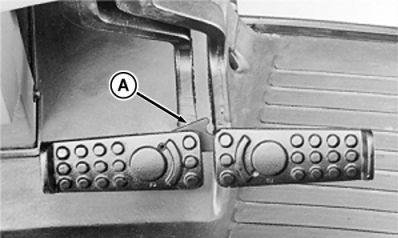

Test brakes (A) with engine stopped to be sure manual brake system is functioning. (See Service/250 Hours).

Press both pedals to stop tractor while disengaging the clutch.

Use individual brakes to assist in making sharp turns.

IMPORTANT: Avoid unnecessary wear on the brakes. DO NOT rest feet on the brake pedals during tractor operation.

Engage MFWD for four-wheel braking when stopping heavy load.

Lock pedals together when transporting tractor.

AG,RX15494,1690 -19-26AUG99-1/1
