Operating the PTO

CAUTION: Avoid personal injury. Stop the engine and allow the PTO driveline to stop before making adjustments, connections, or cleaning of PTO-driven equipment.

Always disengage the PTO when not in use.

PTO can be engaged or disengaged without operating the clutch.

NOTE: PTO and Service Alert indicator lights will flash with an audible warning signal if operator leaves seat with PTO engaged. PTO does not disengage with operator absent from the seat.

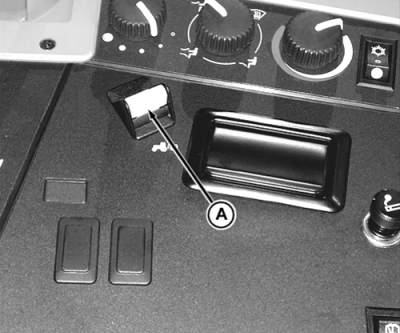

Push down and forward on PTO switch (A) to engage PTO clutch. PTO indicator on display panel will show PTO engagement.

Pull back PTO switch to disengage. PTO brake will engage automatically.

Lift control knob (B) and turn clockwise to engage PTO clutch. PTO indicator on display panel will show PTO engagement.

Push PTO control knob down to disengage clutch. PTO brake will engage automatically.

NOTE: If the engine is stopped and then restarted while the PTO is running, the PTO will not operate. Disengage the PTO switch and then engage the PTO again.
