Installing QUIK-TATCH™ Weights

Up to 14QUIK-TATCH ™ weights can be installed on tractors.

When required, install weights, balanced on each side of center (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, run retaining bolts (B) through holes and secure with a nut. Tighten to 230 N·m (170 lb-ft).

QUIK-TATCH is a trademark of Deere & Company

AG,RX15494,1755 -19-28AUG99-1/2

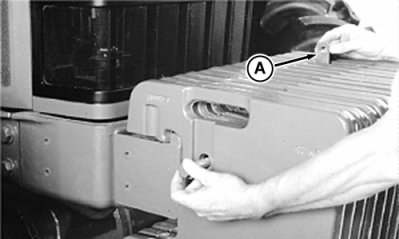

When eight more weights are installed, insert retainers (A) between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to 230 N·m (170 lb-ft).

AG,RX15494,1755 -19-28AUG99-2/2
