Tighten Front Wheel and Axle Bolts-After 3 and 10 Hours

Axle Torques (A):
.. Regular or Wide Axle...600 N·m (445 lb-ft)

Two-Wheel Drive Wheel Torques (B):
.. Front Wheel-to-Hub...310 N·m (230 lb-ft)
.. Hi-Crop Rim-to-Disk... 310 N·m (230 lb-ft)
.. Hi-Crop Disk-to-Hub... 310 N·m (230 lb-ft)

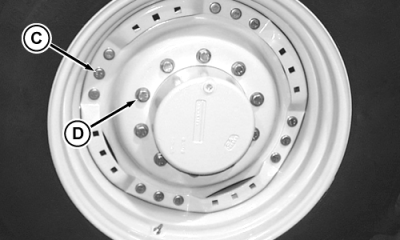

MFWD Wheel Torques:
. C-Rim-to-Disk:
... Standard Wheel... 310 N·m (230 lb-ft)
... Hi-Crop Wheel... 600 N·m (445 lb-ft)
. D-Disk-to-Hub:
... Standard Wheel... 600 N·m (445 lb-ft)
... Hi-Crop Wheel... 600 N·m (445 lb-ft)


RW22662A
RW26501

AG,RX15494,1822 -19-03SEP99-1/1
