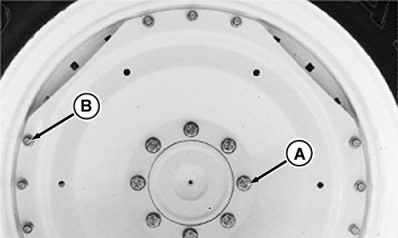

| A-Disk-to-Hub... 600 N·m (445 lb-ft) |
| B-Rim-to-Disk: |
| ... 34 in. or 38 in. wheels...310 N·m (230 lb-ft) |
| ... 46 in. or 50 in. wheels...600 N·m (445 lb-ft) |

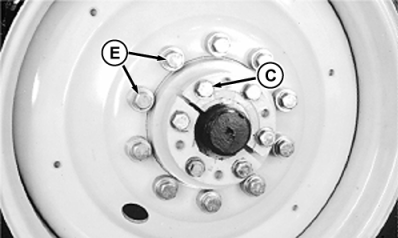

| C-Sleeve Retaining Bolt |
| ... First Tightening...204 N·m (150 lb-ft) |
| ... Second Tightening...410 N·m (300 lb-ft) |
| ... Final Tightening...600 N·m (445 lb-ft) |

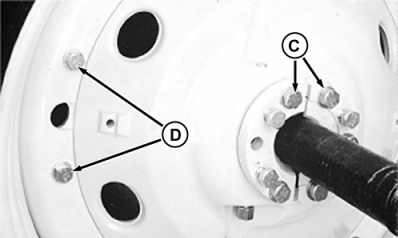

| D-Wheel-to-Rim... 600 N·m (445 lb-ft) |
| E-Wheel-to-Hub... 600 N·m (445 lb-ft) |
