Check Coolant Level

Open hood.

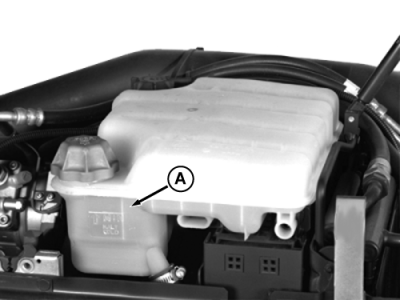

Check coolant level using marks on coolant tank (A) before starting tractor. Coolant level should be between "MIN" and "MAX" marks when cold.

If coolant level is low, check for any signs of leakage and repair if necessary. Check all hose clamps for tightness. Add coolant, as specified in Fuels, Lubricants and Coolant Section, to overflow tank.

IMPORTANT: Add 30 ml of John Deere Coolant Conditioner for every liter of coolant added (4 fluid ounces per gallon). (See Engine Coolant Conditioner in Fuels, Lubricants and Coolant Section.)

AG,RX15494,1835 -19-03SEP99-1/1
