Check Transmission-Hydraulic Oil Level

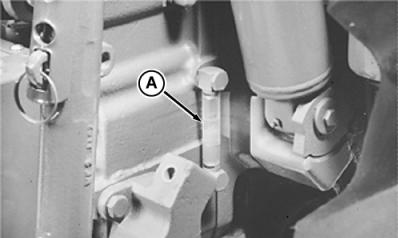

Observe oil level in site glass (A) with tractor on level ground, three-point hitch in the lowered position, and engine stopped. Oil level should be at the upper mark on the glass.

NOTE: Oil level will be lower with engine running or with hitch raised.

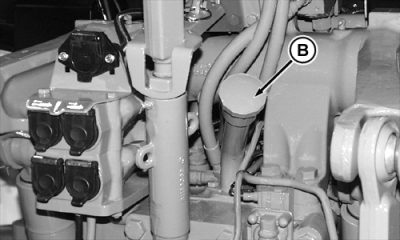

If oil level is below the lower mark, remove filler cap (B) and add hydraulic oil. (See Transmission-Hydraulic Oils specified in Fuels, Lubricants and Coolant Section).

AG,RX15494,1836 -19-03SEP99-1/1
