Lubricate Front Axle

NOTE: Under normal conditions, lubricate every 250 hours.

When operating tractor in extremely wet or dusty conditions, apply several shots of grease to each fitting.

Use John Deere High-Temperature/Extreme-Pressure /Non-Clay grease.

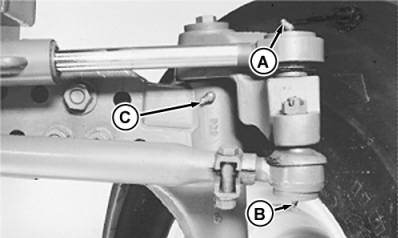

A-Steering Cylinder Ends
B-Tie Rods
C-Steering Spindles

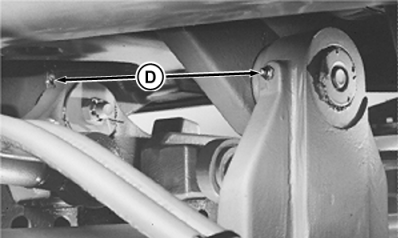

D-Axle Pivot Pins

AG,RX15494,1840 -19-03SEP99-1/1
