Lubricate MFWD Axle

NOTE: Lubricate every 250 hours under normal conditions.

Lubricate the MFWD front axle at 10 hour intervals when operating in extremely wet or dusty conditions.

Use John Deere High-Temperature/Extreme-Pressure/ Non-Clay grease or other grease as specified in Fuels, Lubricants and Coolant Section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

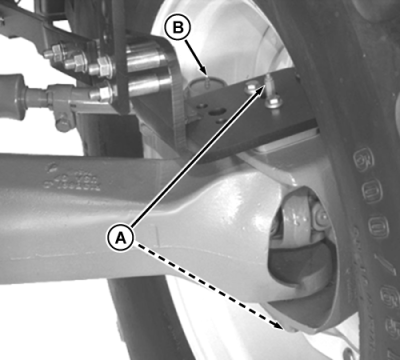

Kingpins -Apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -Apply several shots of grease to fittings (B).

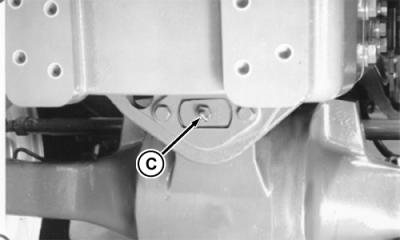

Axle Pivot -Apply several shots of grease to fitting (C).

AG,RX15494,1841 -19-03SEP99-1/1
