Lubricate Hitch Components

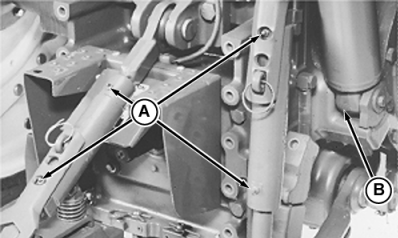

Apply several shots of grease to lift link and center link fittings (A).

Lubricate lift cylinder ends (B).

Use lubricant specified in Fuels, Lubricants, and Coolant Section.

RW55034A

AG,RX15494,1842 -19-03SEP99-1/1
