Drain Fuel Tank Sump

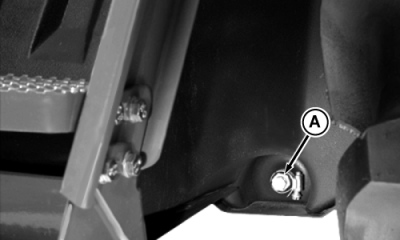

Loosen small hex plug (A), while holding large hex plug with a wrench, on both fuel tanks. Remove small plug and drain fuel tanks until water or sediment has been eliminated.

NOTE: A drain valve is available for areas or climates where more water or sediment is noticed in the fuel. See your John Deere Dealer.

AG,RX15494,1847 -19-03SEP99-1/1
