Check MFWD Axle Housing Oil Level

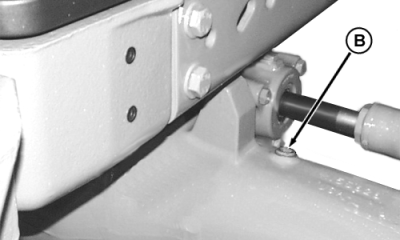

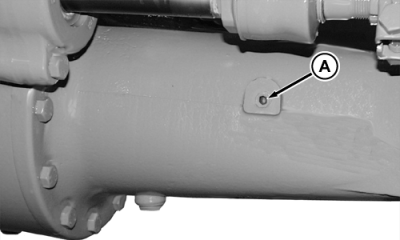

Put the tractor on level ground. Check axle housing oil level (A). Oil level should be just below plug hole. If low, remove plug (B) and add oil until level is correct. John Deere HY-GARD oil is recommended. (See Fuels, Lubricants, and Coolant Section.)

AG,RX15494,1855 -19-03SEP99-1/1
