Check Hi-Crop Rear Axle Housing Oil Level

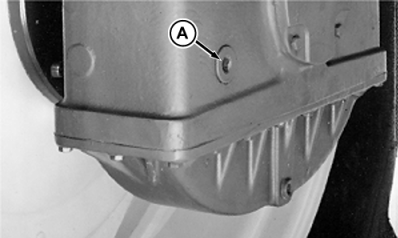

Put the tractor on level ground. Remove plug (A). Oil level should be just below plug hole. Add oil if level is low. Use lubricant specified under Gear Lubricant in Fuels, Lubricants, and Coolant Section.

AG,RX15494,1856 -19-03SEP99-1/1
