Change Transmission-Hydraulic Oil

Put the tractor on level ground and run the engine to warm oil.

Stop the engine and remove drain plugs (A) on bottom of transmission housing, differential housing, and MFWD clutch housing.

Reinstall plugs after oil has drained. (See Cleaning Hydraulic Oil Suction Screen.)

Refill with Transmission-Hydraulic oil specified in Fuels, Lubricants, and Coolant Section.

NOTE: Capacities are average values and may vary between tractors or each oil change.

System Capacities

SyncroPlus... 57 L (15 gal)
SyncroPlus with MFWD... 64 L (17 gal)
PowrQuad... 57 L (15 gal)
PowrQuad with MFWD... 64 L (17 gal)
PowrQuad with Creeper... 61 L (16 gal)
PowrQuad with MFWD and Creeper... 68 L (18 gal)




Start and run engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

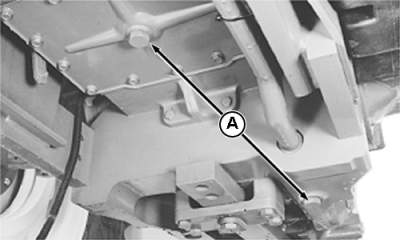

RW55040A

SynchroPlus-Two-Wheel Drive

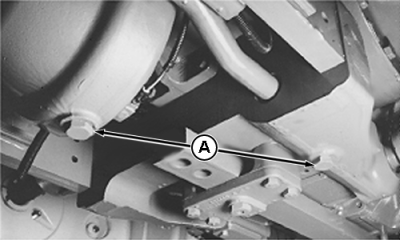

RW55041A

PowrQuad-MFWD

AG,RX15494,1864 -19-03SEP99-1/1
