Change MFWD Wheel Hub Oil

1. Put the tractor on level surface.

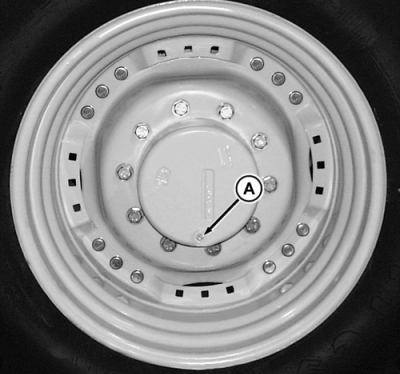

2. Rotate wheel until drain fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain-fill plug positioned horizontally after oil has drained.

4. Add John Deere GL-5 (85W-140) oil through drain-fill hole until oil is even with bottom of hole. Install the plug.

Specification

Wheel Hub Capacity -Standard 1.9 L (2.0 qt)
High-Crop 3.8 L (4.0 qt)

RW26479

AG,RX15494,1866 -19-03SEP99-1/1
