Change MFWD Axle Housing Oil

1. Put the tractor on level surface.

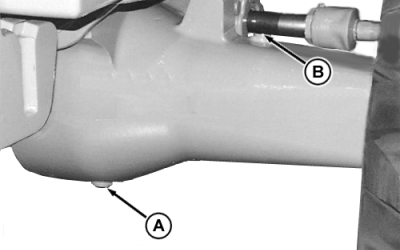

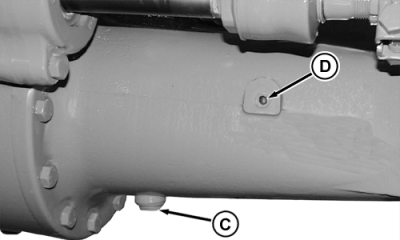

2. Remove axle housing drain plug (A) and (C). Replace plug after oil has drained.

3. Add John Deere HY-GARD ® oil as specified in Fuels, Lubricants, and Coolant Section), through fill hole (B) until oil is even with bottom of hole (D). Install the plugs.

Specification

4. After a few minutes of operation, recheck oil level. Add oil if necessary.

5. Tighten all plugs to 70 N·m (52 lb-ft).

HY-GARD is a trademark of Deere & Company

AG,RX15494,1867 -19-03SEP99-1/1
