Change Hi-Crop Rear Axle Housing Oil

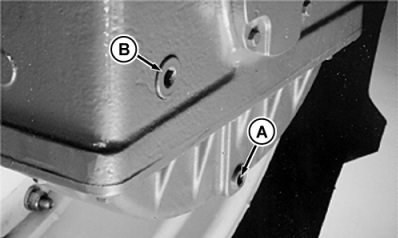

1. Put tractor on level ground and remove plug (A) to drain oil.

2. Add John Deere GL-5 Gear Lubricant (85W-140) by removing fill plug (B).

Specification

Axle Housing -Capacity (each) 3.8 L (1 gal)

RW22205A

AG,RX15494,1868 -19-03SEP99-1/1
