Lubricate PTO Shaft

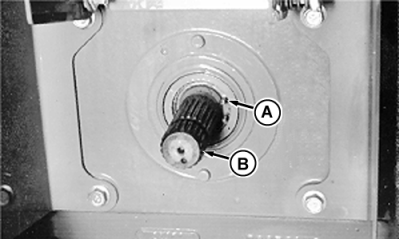

Remove snap ring (A) and pull out PTO stub shaft (B).

Clean stub shaft thoroughly, coat splines with John Deere High-Temperature/Extreme-Pressure/Non-Clay grease to prevent rust and install into housing. Install snap ring in groove to retain shaft. (See Changing PTO Stub Shaft in Drawbar and PTO section.)

AG,RX15494,1875 -19-03SEP99-1/1
