Replace Fuel Filter

Loss of power under heavy load could indicate fuel filter plugging. To replace filter:

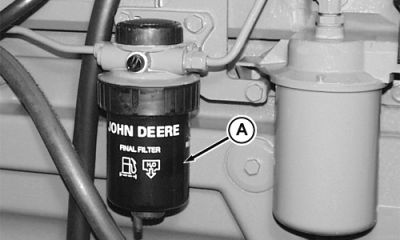

Unscrew filter retaining ring (A) to remove filter. Pull fuel filter from filter base and discard.

Align keys on fuel filter with slots in filter base and install. Hold filter firmly against base.

Tighten the fuel filter retaining ring.

NOTE: Correct installation is indicated when a "click" is heard and a release of the retaining ring is felt.

For a cleaner service, a plug is provided with new element for plugging used element.

Bleed fuel system as described in this section.

AG,RX15494,1882 -19-04SEP99-1/1
