Replace Engine Air Filters

If AIR FILTER indicator is ON, remove and clean air filter.

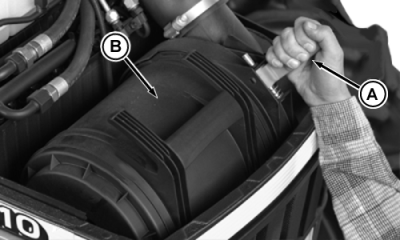

Open hood, unfasten latch (A) and remove canister (B). Pull element from canister.

RW55973A
RW55974A

AG,RX15494,1887 -19-04SEP99-1/2

IMPORTANT: Remove secondary element ONLY if element is damaged or requires replacement. Do not attempt to clean secondary element.

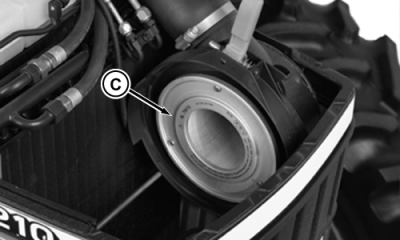

NOTE: The secondary element (C) should be removed only when being replaced, normally once a year. (See Replace Engine Air Filters in Service/Annual Section).

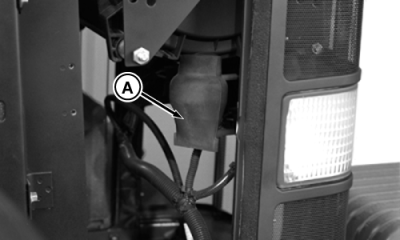

Remove and clean the rubber dust unloading valve (A). Replace valve if damaged.

IMPORTANT: Do not operate engine without air cleaner or rubber dust unloading valve installed.

RW55975A

AG,RX15494,1887 -19-04SEP99-2/2
