Replace Fan Belt

NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

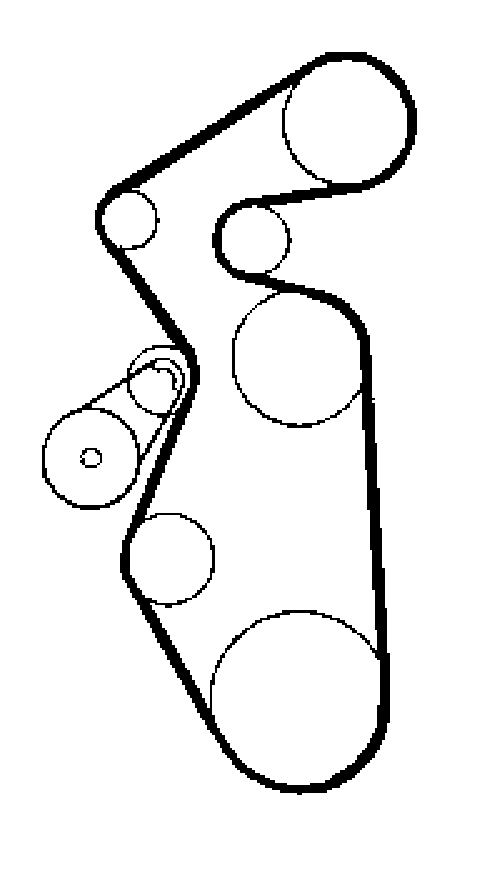

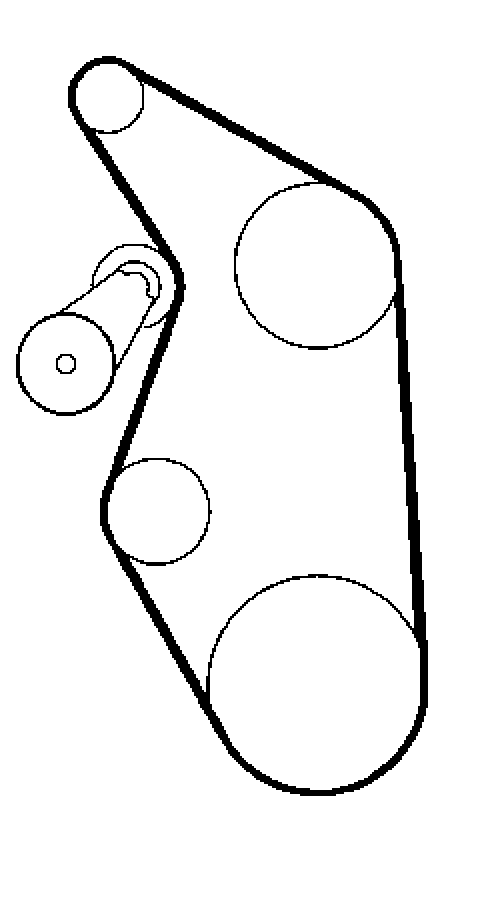

1. Rotate tension arm by placing 1/2 in. breaker bar in arm (A).

2. Remove belt from fan drive pulley.

3. Relax tension and remove belt from crankshaft pulley and fan.

4. Replace belt.

AG,RX15494,1889 -19-06SEP99-1/1
