Adjusting Head Lights
RW22200A

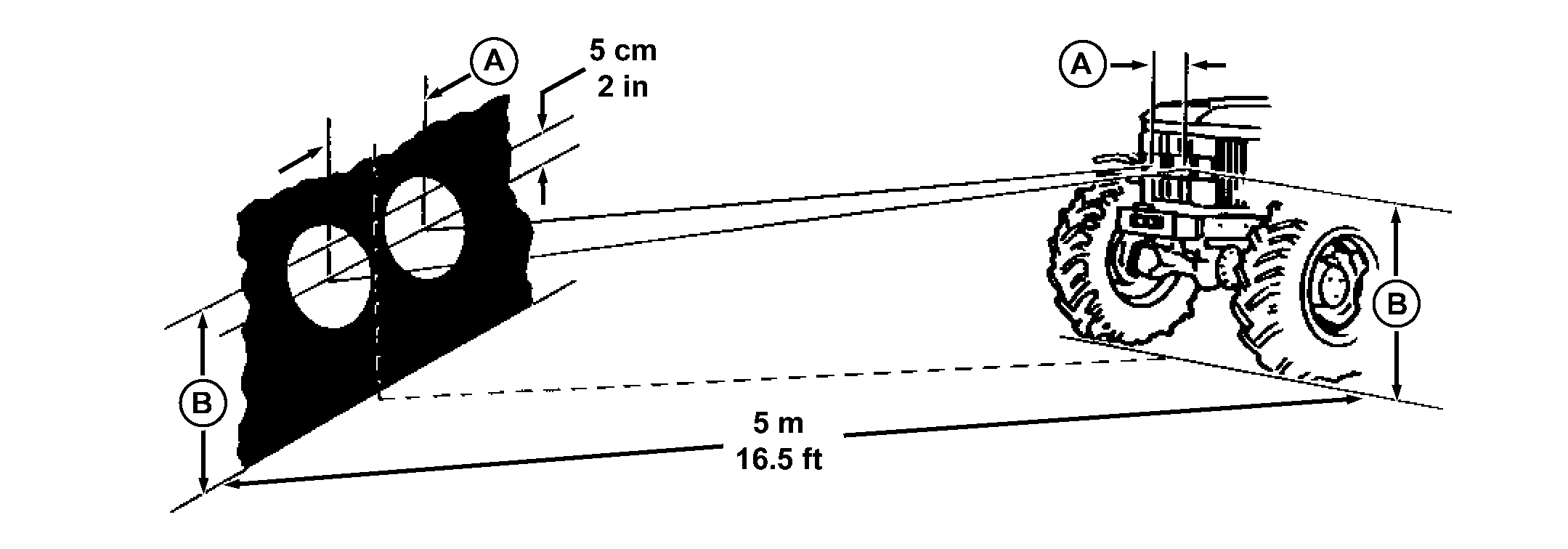

Park tractor on a level surface 5 m (16.5 ft) from a vertical wall.

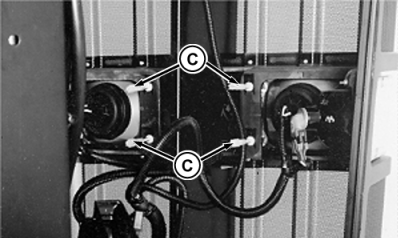

Use adjusting screws (C) to adjust each headlight so the bright-dark border forms a horizontal line 5 cm (2 in.) lower than headlight height (B).

Switch to high beam. Laterally align headlights so the distance between light beam center on test surface corresponds to distance (A) between headlights.

RW22201A

AG,RX15494,1891 -19-06SEP99-1/2

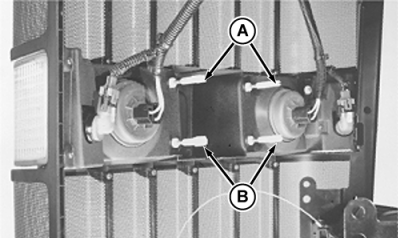

Adjust head lights by self-locking screws on the inner top (A) and inner-bottom (B) of each light.

Beam Direction Screw Adjustment

Raise Turn Screw (A) Counterclockwise
Turn Screw (B) Clockwise
Lower Turn Screw (A) Clockwise
Turn Screw (B) Counterclockwise
Inward Turn Screw (A) and (B) Counterclockwise
Outward Turn Screw (A) and (B) Clockwise


RW55066A

AG,RX15494,1891 -19-06SEP99-2/2
